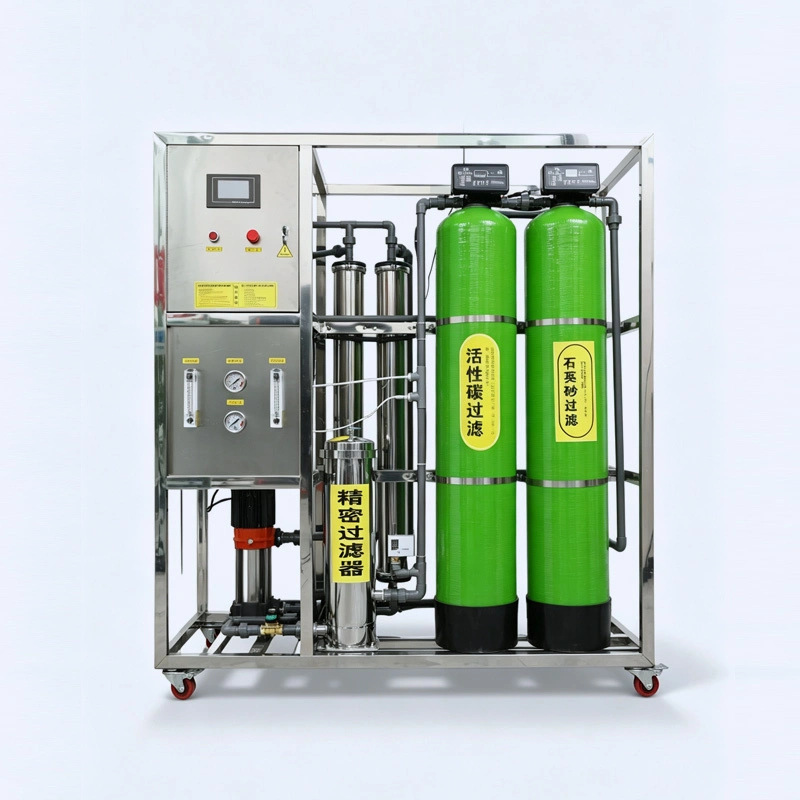

0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 1
0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 2
0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 3
0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 4
0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 1
0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 2
0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 3
0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 4

0.5 T/H 4-Stage Commercial RO Systems Compact Filtration

This compact, skid-mounted water treatment system is engineered for a rated permeate flow of 0.5 m³/h (500 L/h). It integrates four core treatment stages—quartz sand filtration, activated carbon adsorption, precision cartridge filtration, and reverse osmosis (RO)—into a single mobile frame. An optional antiscalant dosing system can be added to protect the RO membranes against mineral scaling, making the system versatile for municipal tap water, groundwater, and lightly brackish water sources.

Ideal for small commercial, light industrial, laboratory, and drinking-water applications, the system delivers consistent high-purity water with fully automated operation and minimal operator attention.
5.0
design customization
Inquiry

    oops...!

    no product data.

    Go to homepage
    Write a Review

    Core 4-Stage Filtration Process

    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 5
    ⚙️ Quartz Sand Filtration
    Removes suspended solids, sediment, rust, and large particulates, protecting downstream equipment and preventing clogging.
    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 6
    ⚙️ Activated Carbon Filtration
    Adsorbs residual chlorine, organic compounds, unpleasant tastes, odors, and color, improving water aesthetics and protecting the RO membrane from oxidation.
    4 (14)
    ⚙️ Precision Cartridge Filtration (5 μm)
    A 304 stainless-steel security filter that captures fine particulates down to 5 microns, serving as the final polishing barrier before the RO high-pressure pump and membrane.
    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 8
    ⚙️Reverse Osmosis (RO) System
    The core purification stage, fitted with 2 × 4040 high-efficiency RO membrane elements, removing up to 99% of dissolved salts, heavy metals, bacteria, and viruses to produce high-purity permeate.
    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 9
    ⚙️ Optional — Antiscalant Dosing System
    A metering dosing pump injects food-grade antiscalant into the RO feed water to inhibit CaCO₃, CaSO₄, and silica scaling, extending membrane service life and reducing cleaning frequency. Recommended for feed-water hardness above 3 mmol/L or for continuous-operation scenarios.

    Technical Specifications

    Parameter Specification
    Rated Permeate Flow Rate 0.5 m³/h (500 L/h)
    Operation Mode Automatic continuous / scheduled
    Treatment Stages 4 (Sand → Carbon → 5 μm Precision → RO)
    RO Rejection Rate ≥98% (TDS, standard test conditions)
    Recovery Rate 50–60% (typical)
    Pre-treatment Tanks 2 × FRP tanks (quartz sand + activated carbon)
    Multiport Valves Automatic, top-mounted on each FRP tank
    Precision Filter 5 μm, 304 stainless-steel housing
    RO Membranes 2 × 4040 high-efficiency RO elements
    High-Pressure Pump Vertical multistage centrifugal pump
    Antiscalant Dosing Optional (metering pump + solution tank)
    Frame Material 304 stainless steel
    Control System PLC touchscreen controller + automatic valves
    RO Operating Pressure 0.7–1.0 MPa
    Instrumentation Pressure gauges, rotameters, conductivity monitor
    Power Supply 220V / 380V, 50/60 Hz (customizable)
    Mobility Caster wheels with brakes

    Key Features

    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 10
    4-Stage All-in-One Design
    Pre-treatment, security filtration, and RO integrated on a single skid—no separate units required.
    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 11
    Optional Antiscalant Dosing
    Chemical scale inhibition available on request, ideal as a space- and cost-saving alternative to ion-exchange softening.
    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 12
    Industrial-Grade Build
    304 stainless-steel frame and RO membrane housings; corrosion-resistant FRP pre-treatment tanks for long service life.
    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 13
    Smart Automation
    PLC touchscreen control panel with automatic multiport valves, flow metering, pressure monitoring, conductivity display, and fault alarms.
    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 14
    Mobile Skid
    Mounted on caster wheels with brakes for easy relocation and installation.
    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 15
    Reliable RO Performance
    Two 4040 membranes deliver consistent permeate quality with ≥98% TDS rejection under standard conditions.
    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 16
    Low Maintenance
    Simple, robust design minimizes routine upkeep—suitable for sites without dedicated water-treatment staff.
    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 17
    OEM/ODM Support
    Fully customizable flow rates, configurations, voltages, and branding to meet your market requirements.

    Benefits for Your Business

    • High-Purity Water Output: RO technology ensures consistent water quality suitable for drinking, laboratory use, and industrial processes.

    • Membrane Protection: Pre-treatment stages plus optional antiscalant dosing guard the RO membrane against fouling and scaling, reducing maintenance costs.

    • Fully Automated Operation: PLC-controlled backwashing, filtration, and RO running cycles enable set-it-and-forget-it operation with fault alarms.

    • Space-Efficient & Mobile: The all-in-one skid with caster wheels saves floor space and allows flexible deployment across different production areas.

    • Versatile Applications: Ideal for cafes, schools, small workshops, boiler pre-treatment, laboratories, residential complexes, and light manufacturing.


    3 (14)

    📦 What’s Included

    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 19 Complete pre-assembled skid-mounted system

    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 20 2 × FRP filter tanks (quartz sand + activated carbon) with automatic multiport valves

    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 21 1 × 5 μm 304 stainless-steel precision cartridge filter

    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 22 2 × 4040 RO membrane housings with high-efficiency RO membranes

    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 23 High-pressure vertical multistage pump

    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 24 PLC touchscreen control panel

    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 25 Pressure gauges, rotameters, and conductivity monitor

    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 26 Caster wheel kit with brakes

    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 27User manual and installation guide

    Optional Add-On: Antiscalant dosing system (metering pump + solution tank + food-grade antiscalant initial charge) — available on request.

    💼 OEM/ODM Services

    As a professional water treatment equipment manufacturer, we offer comprehensive OEM/ODM solutions to meet your unique requirements:

    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 28 Custom flow rates and system configurations

    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 29 Branding and logo customization on the control panel and frame

    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 30 Design modifications for specific feed-water quality challenges

    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 31 Optional antiscalant dosing, UV sterilization, or EDI polishing modules

    0.5 T/H 4-Stage Commercial RO Systems Compact Filtration 32 Packaging and documentation tailored to your target market
